Product number

Planetary gearbox 36

产品规格:

外壳材质Housing Material金属
输出轴承形式Bearing at output滚珠轴承
径向负载(N)Radial load (10mm from flange)≤120
轴向负载(N)Shaft axial load≤80
静态主轴最大承受压入力Shaft press fit force max Static (N)≤500
径向间隙(mm)Radial play of shaft≤0.03
轴向间隙(mm)Thrust play of shaft≤0.1
背隙(无负载时)Backlash at no-load≤1.5°



contact us
Planetary gearbox 36 Consult now
Home >> Product >> Planetary gearbox
Planetary gearbox 36

Product information
标准减速比形式





减速比额定允许负载(NM)瞬间允许负载(NM)效率(%)长度(MM)重量(G)减速比级数
1/50.31.081%24.81451
1/161.23.572%32.41732
1/201.23.572%32.41732
1/251.23.572%32.41732
1/532.57.565%41.92133
1/622.57.565%41.92133
1/762.57.565%41.92133
1/942.57.565%41.92133
1/1172.57.565%41.92133

*以上仅为代表产品,派生产品可按客户需求定制。

*负载与转速有关,具体数据需参考实际情况。

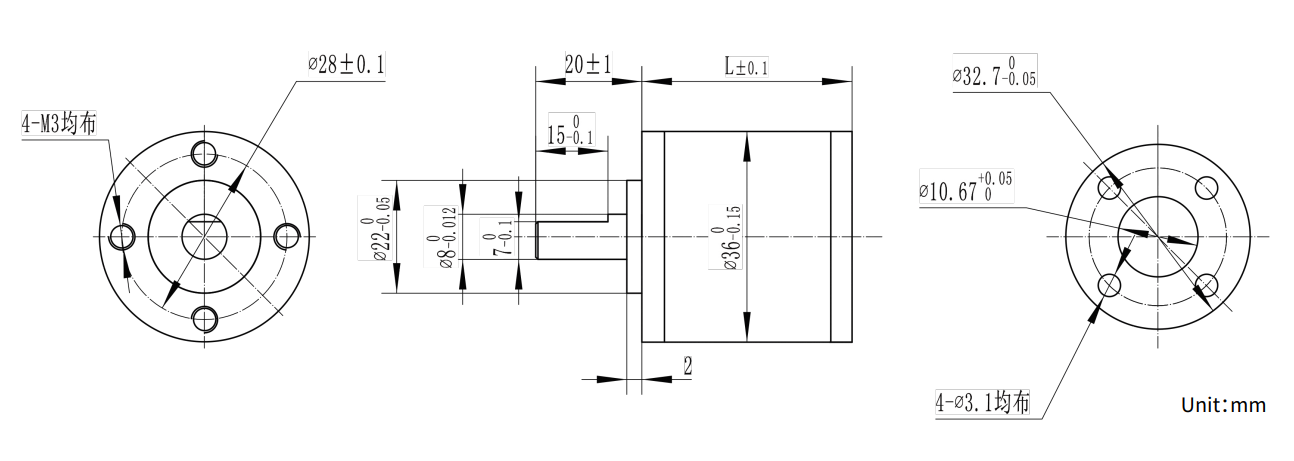

外型图
